Products
All of them come from the same process: melted, forged, heat treated, peeled and cut to size. The difference is in the final shape and where the part is used.
All of them come from the same process: melted, forged, heat treated, peeled and cut to size. The difference is in the final shape and where the part is used.
Large-section forged shafts for pump, turbine, gearbox and crane shafts. The forging ratio gives a void-free, fine-grained structure in the core; after peeling the shaft is ready for ultrasonic testing.
Discs cut from forged shafts or forged directly by upsetting. For gear, flange and wheel manufacturers, they provide a dense, directional structure around the circumference where the teeth will be cut.
Rectangular blocks for plastic injection, die casting and forging dies. Forging provides uniform hardness across the section and good machinability, even in large sections.
The grades we forge most often. Click a grade name to open its chemical composition, mechanical properties and heat treatment data. For a grade not listed, send us your specification.
| Grade | Type | Standard | Typical use | Delivery condition |
|---|---|---|---|---|
| 42CrMo4 ↗1.7225 | Quenched and tempered steel | EN 10083-3 | Shafts, axles, medium to heavily loaded gears | +QT · +A · +N |
| 34CrNiMo6 ↗1.6582 | Quenched and tempered steel, high toughness | EN 10083-3 | Heavy shafts, crankshafts, large-section parts | +QT · +A |
| 18CrNiMo7-6 ↗1.6587 | Case-hardening steel | EN 10084 | Heavily loaded gears, pinions | +A · +FP |
| 16MnCr5 ↗1.7131 | Case-hardening steel | EN 10084 | Gears, shafts (medium load) | +A · +FP |
| C45 ↗1.0503 | Carbon steel | EN 10083-2 | General machine parts, flanges | +N · +QT |
| 1.2311 ↗40CrMnMo7 · P20 | Plastic mould steel | ISO 4957 | Plastic injection moulds | Pre-hardened |
| 1.2738 ↗40CrMnNiMo8-6-4 · P20+Ni | Plastic mould steel | ISO 4957 | Large-section plastic moulds | Pre-hardened |
| 1.2344 ↗X40CrMoV5-1 · H13 | Hot-work tool steel | ISO 4957 | Die-casting and forging dies | +A (soft annealed) |
Abbreviations: +N normalised · +QT quenched and tempered (water/oil quench + tempering) · +A soft annealed · +FP ferrite-pearlite annealed. Grades held in stock: 42CrMo4, 34CrNiMo6, C45 and 1.2311.
Shaft (Ø × L), disc (Ø × t) or block (A × B × H). A technical drawing, if available.
Steel grade and standard; the specification if special chemical limits apply.
Heat treatment (+N, +QT, +A), target hardness or mechanical properties.
Ultrasonic testing class, certificate type (2.2 / 3.1 / 3.2).
Number of parts, required delivery date and delivery location.

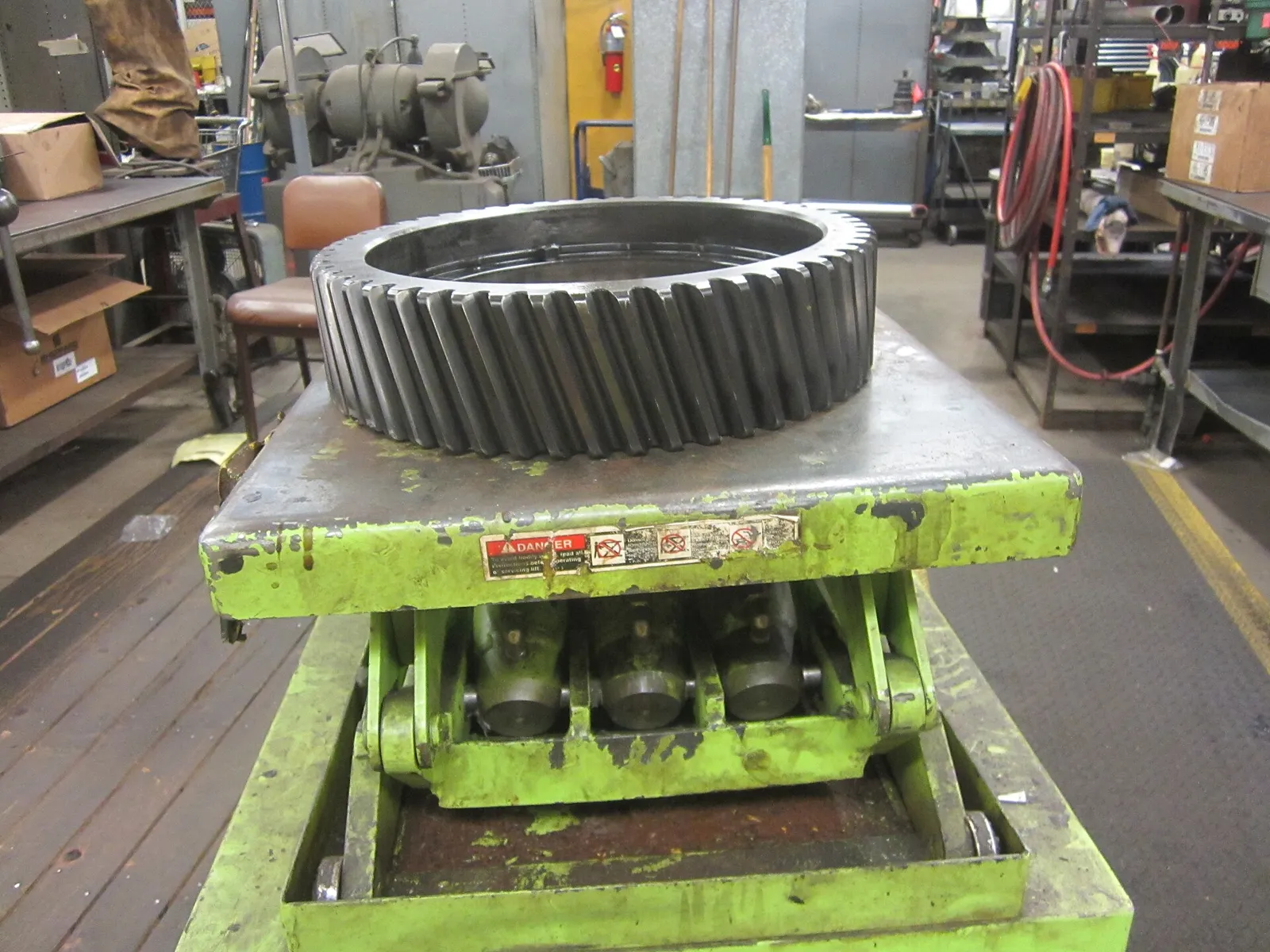

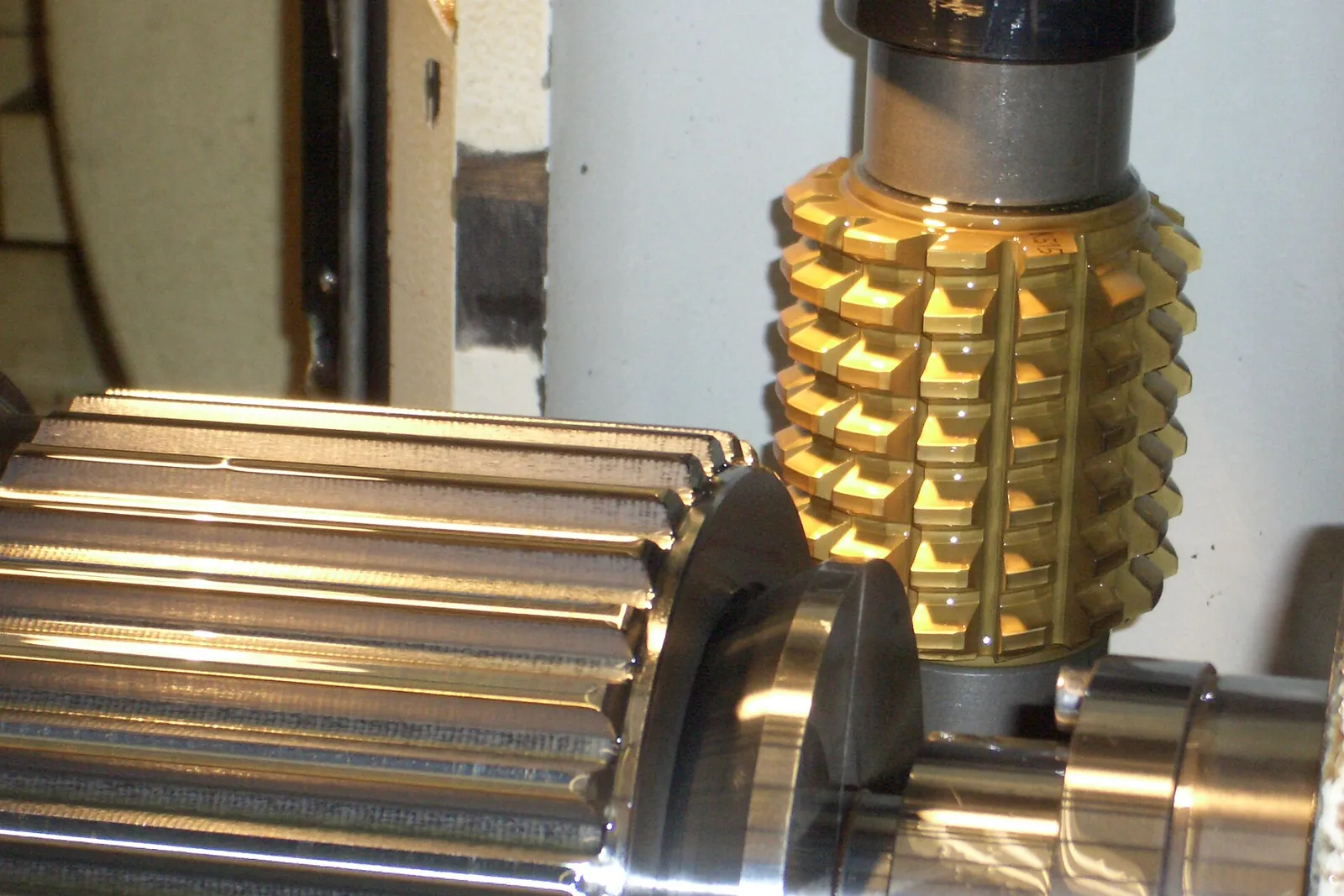

Photos of parts after forging and machining.
The photographs are illustrative. Their sources and licences are listed on the image credits page.
